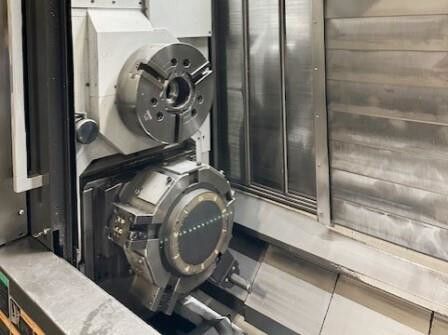

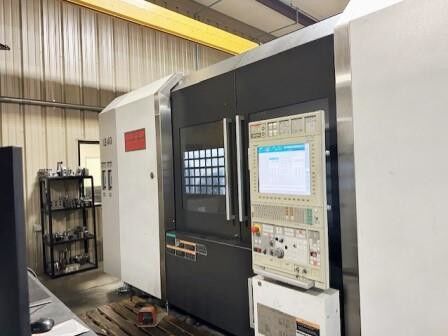

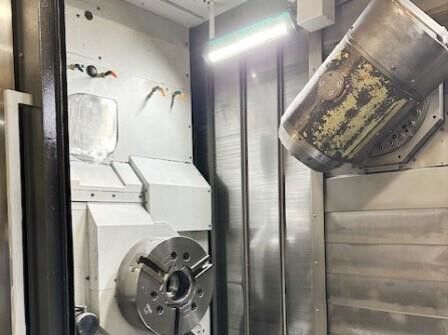

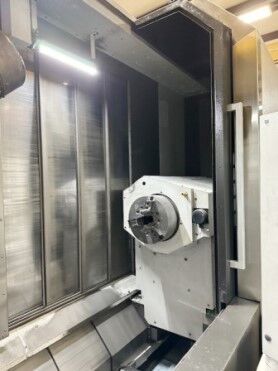

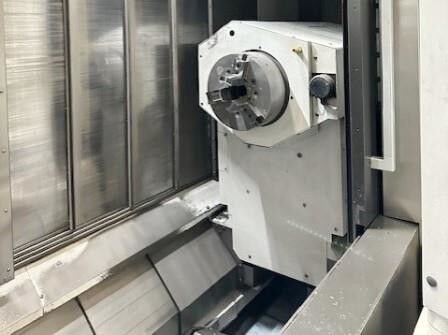

2011 Mori Seiki NT-4300 DCH/1500SZ
Machine Specifications
| Year | 2011 |
|---|---|
| Control Type | Fanuc MSX-711 IV |
| Swing | 28.7" |
| Machining Length | 58.9" |
| Spindle Speed | 3,000 RPM |
| Rotary Speed | 12,000 RPM |
| Chuck | 12" (2nd Spindle), 15" (Main Spindle) |
| Equipped With | 12" Kitagawa B-212 Hydraulic Chuck on Sub Spindle, 15" Kitagawa B-15 Hydraulic Chuck on Main Spindle, B-Axis Scale Magnescale, Chip Conveyor, CoolJet Model 3032-NT High Pressure Coolant Unit, Diameter/Radius Dynamic Exchange, Hob Function (Main Spindle), Nano Smoothing, Simultaneous 5 Axis Control, Super High-Pressure Coolant System Interface Only, Tilted Working Plane Command, Tool Life Management, Tool Spindle Through Coolant System, User Memory Area (Built-In Mapps) 6 Gb |
Request A Quote for this 2011 Mori Seiki NT-4300 DCH/1500SZ Today!
Similar Used Machines
(10" - 12" Chuck)
2011 Mori Seiki NT-4300 DCH/1500SZ
The 2011 Mori Seiki NT-4300 DCH/1500SZ is a high-performance integrated mill-turn center that combines advanced turning and milling capabilities. Featuring technologies like DCG (Driven at the Center of Gravity) and DDM (Direct Drive Motor), it ensures high-speed, precise machining. The 2011 Mori Seiki NT-4300 DCH/1500SZ is a versatile and high-performance integrated mill-turn center that combines the milling capabilities of horizontal machining centers with the turning capabilities of CNC lathes.
Key Features
- Integrated Mill-Turn Center: Perfectly fuses turning and milling functions for comprehensive part processing.
- Advanced Technologies: Incorporates DCG (Driven at the Center of Gravity), DDM (Direct Drive Motor), and ORC (Octagonal Ram Construction) for high-speed, high-precision machining.
- Flexible Configurations: Offers a standard 12-inch chuck size and two distance options between centers—1,000 mm and 1,500 mm—to accommodate various machining needs.
- Enhanced Productivity: Designed to deliver high productivity through its advanced technological features and robust construction.
