2004 Mazak Integrex 400IIIST
Machine Specifications
| Year | 2004 |
|---|---|
| Control Type | Mazatrol Fusion 640MT Pro |
| Swing | 33.5" |
| Max Cutting Diameter | 33.5" |
| Machining Length | 60" |
| Spindle Speed | 3,300 RPM (Main Spindle), 4,000 RPM (2nd Spindle) |
| Rotary Speed | 12,000 RPM |
| Chuck | 10" (2nd Spindle), 12" (Main Spindle) |
| Equipped With | 10” Kitagawa B210 3-Jaw Hydraulic Chuc, 12" Kitagawa B21215X 3-Jaw Hydraulic Chuck, 40 ATC, Automatic Tool Eye, Chip Conveyor, Chuck Air Blast, EIA/ISO Programming Language, KM 63 Spindle Taper, Synchronized Tapping, Tool Eye Measurement, Tool Life Monitoring, Tool Wear Compensation, Variable Feed Rate Control, Y Axis Control |
Request A Quote for this 2004 Mazak Integrex 400IIIST Today!
Similar Used Machines
(10" - 12" Chuck)
2004 Mazak Integrex 400IIIST

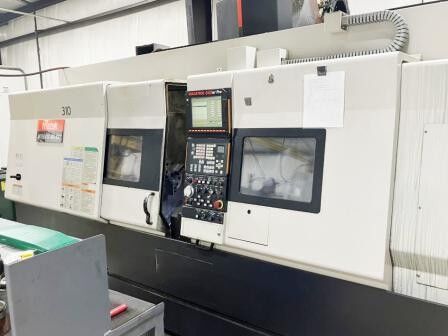

The 2004 Mazak Integrex 400-IIIST is a high-performance multitasking CNC machine designed to streamline complex manufacturing operations. Combining both turning and milling capabilities in a single setup, this horizontal lathe is ideal for shops seeking to reduce cycle times and improve part accuracy. Its robust construction and advanced control system allow for seamless integration of multiple machining processes, making it a versatile solution for a wide range of applications. Whether you’re working with intricate components or larger parts, the Integrex 400-IIIST delivers precision and efficiency with every cycle.

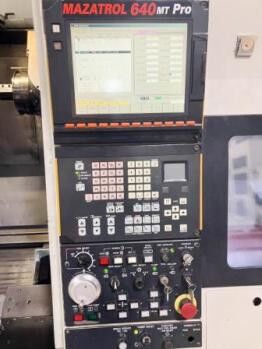

Equipped with the Mazatrol Fusion 640MT Pro control, this machine offers intuitive programming and real-time monitoring to enhance operator productivity. The dual-spindle configuration enables complete part machining without manual intervention, while the B-axis milling spindle supports 5-axis simultaneous machining for complex geometries. With a generous machining envelope and built-in tool presetter, the Integrex 400-IIIST is engineered to support extended unmanned operation and quick tool changes, helping manufacturers stay competitive in fast-paced production environments.
Key Features:
- Dual spindles for full part machining in one setup
- B-axis milling spindle for advanced 5-axis capabilities
- Lower turret with multiple stations for expanded tooling options
- Large bar capacity for long production runs
- Integrated tool presetter for fast and accurate setup
The 2004 Mazak Integrex 400-IIIST stands out as a powerful, flexible, and reliable machining center that can elevate your shop’s productivity and precision. To learn more or request a quote, contact our Used Machinery Staff today. Our team is ready to help you find the right solution for your manufacturing needs.
