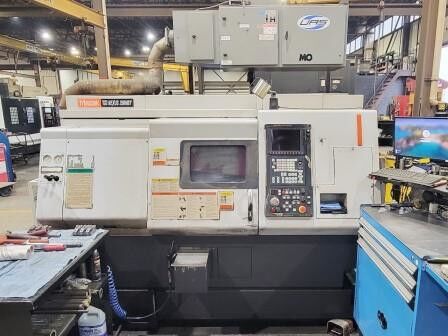

2005 Mazak Quick Turn Nexus 250MSY
Machine Specifications
| Year | 2005 |
|---|---|

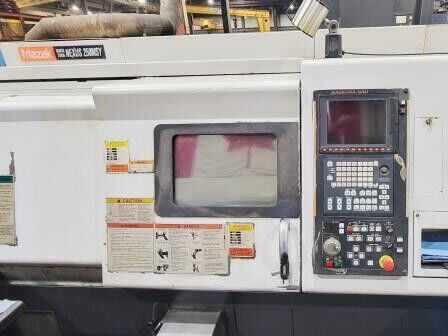

| Control Type | Mazatrol Fusion 640T |
| Swing | 26.5″ |
| Machining Length | 21.27" |
| Spindle Speed | 4,000 RPM (Main Spindle), 6,000 RPM (2nd Spindle) |
| Rotary Speed | 4,500 RPM |

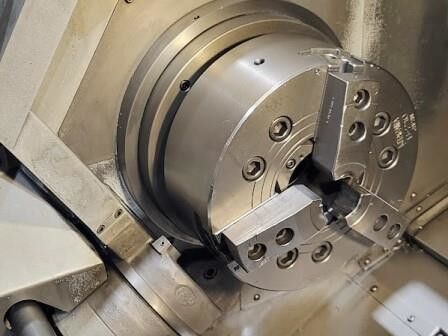

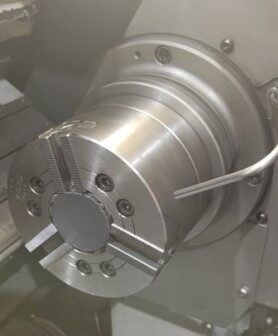

| Chuck | 10" (Main Spindle), 8" (2nd Spindle) |
| Equipped With | 12 ATC, Chip Conveyor, Parts Catcher |
Request A Quote for this 2005 Mazak Quick Turn Nexus 250MSY Today!
Similar Used Machines
(10" - 12" Chuck)
2005 Mazak Quick Turn Nexus 250MSY
The 2005 Mazak Quick Turn Nexus 250MSY, often referred to as the QTN 250MSY, is a versatile CNC turning center that combines advanced technology with exceptional productivity. This multi-tasking machine boasts a powerful main spindle with a maximum speed of 4,000 RPM and a robust 35 HP motor, capable of handling a wide range of materials and cutting operations. With a maximum swing of 26.5 inches and a standard machining diameter of 10.87 inches, the QTN 250MSY is well-suited for both small and medium-sized workpieces.
One of the standout features of this machine is its MSY configuration, which includes milling capabilities, Y-axis functionality, and a second spindle. The Y-axis travel of ±2 inches allows for off-center machining, while the second spindle, with its 6,000 RPM maximum speed and 10 HP motor, enables complete machining of both sides of a workpiece in a single setup. This “Done-in-One” capability significantly reduces cycle times and improves overall part accuracy by eliminating the need for multiple setups.
Key features of the 2005 Mazak Quick Turn Nexus 250MSY include:
- Multi-tasking capability with main spindle, milling, Y-axis, and second spindle functions

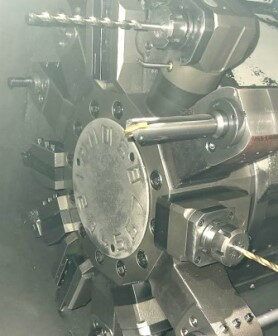

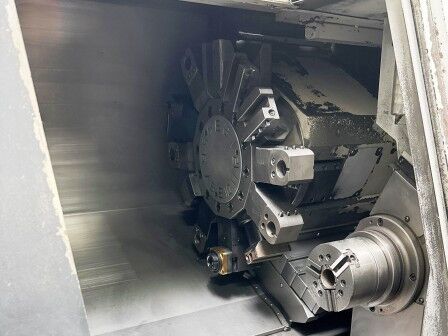

- 12-position turret with VDI tooling system for increased flexibility
- 3-inch bar capacity for efficient processing of bar stock
- Mazatrol Matrix control system for intuitive programming and operation
- Automatic tool eye for precise tool setting and monitoring
The Mazak QTN 250MSY represents a significant leap forward in turning center technology, offering a perfect balance of power, precision, and versatility. Its ability to perform multiple operations in a single setup can dramatically reduce production times and improve part accuracy, making it an ideal choice for shops looking to enhance their machining capabilities and streamline their production processes. To learn more about how this machine can benefit your operations or to discuss pricing and availability, we encourage you to reach out to our Used Machinery Staff via email or phone. Our team is ready to assist you in making an informed decision that aligns with your manufacturing goals.
