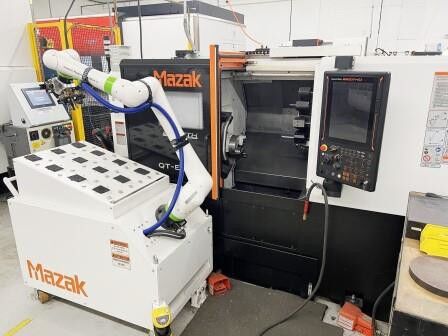

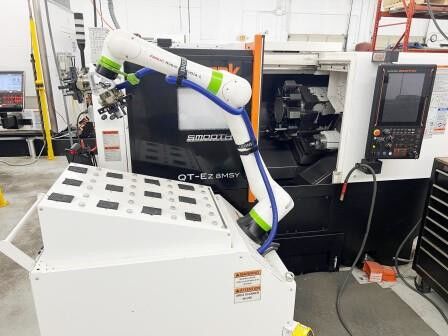

2022 Mazak QT-Ez 8MSY
Machine Specifications
| Year | 2022 |
|---|---|
| Control Type | Mazatrol Smooth Ez |
| Swing | 27.4" |
| Max Cutting Diameter | 13.5" |
| Spindle Speed | 6,000 RPM (2nd Spindle), 6,000 RPM (Main Spindle) |
| Spindle Bore | 2.4" |
| Rotary Speed | 6,000 RPM |
| Chuck | 6" (2nd Spindle), 8″ (Main Spindle) |

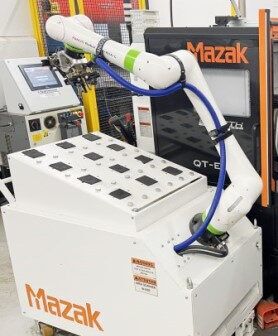

| Equipped With | 12 Position Drum Turret (Bolt On Type), 213 PSI High Power Coolant, 8" Thru-Hole Chuck B-208A0615 w/SR1453 Cyl. (2" Bar Cap Main Spindle), All Available Manuals, Automatic Tool Eye, CC Cobot Double Centric Pneumatic Gripper, CC-10 Cobot Automation Cell, Chip Conveyor Side Disposal (Hinge Type), Chuck Air Blast (Main Spindle), Kitagawa B-205A5 w/ RNKP105-15 Closed Cylinder (2nd Spindle), Robot Interface (Advance/Ethernet/IP), Servo Auto Front Door Open / Close, Signal Tower (3 Colors), Turret Air Blast |
Request A Quote for this 2022 Mazak QT-Ez 8MSY Today!
Similar Used Machines
(6" - 8" Chuck)
2022 Mazak QT-Ez 8MSY
The 2022 Mazak QT-Ez 8MSY is a cutting-edge CNC turning center that combines versatility and precision in a compact package. This machine is designed to handle a wide range of turning and milling operations, making it an ideal choice for shops looking to increase their productivity and capabilities. With its 8-inch chuck size and 2-inch bar capacity, the QT-Ez 8MSY can accommodate a variety of workpiece sizes, while its powerful 20 HP main spindle, capable of reaching speeds up to 6,000 RPM, ensures efficient material removal and superior surface finishes.
One of the standout features of the QT-Ez 8MSY is its multi-tasking capabilities. The machine is equipped with rotary tooling (M) and Y-axis off-centerline machining (Y), allowing for complex part production in a single setup. This multi-tasking functionality is further enhanced by the machine’s second spindle, which enables seamless part transfer for complete machining of both sides of a workpiece. The QT-Ez 8MSY also boasts a hybrid MX Roller Guide System, which significantly improves rigidity, accuracy, and overall reliability during machining operations.
Key features of the 2022 Mazak QT-Ez 8MSY include:
- Multi-tasking capability with main spindle, milling, Y-axis, and second spindle functions
- Advanced MAZATROL SmoothEz CNC control for intuitive programming and operation

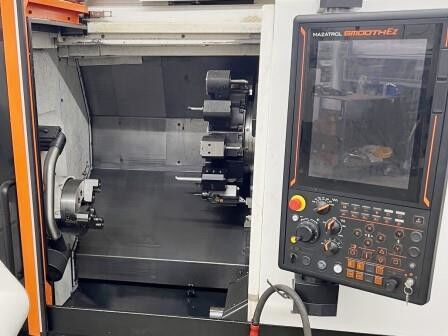

- 12-position drum turret for increased tooling flexibility
- Maximum machining length of 22.4 inches for handling longer workpieces
- Seamless integration options for bar feeders and robots to support unattended operations
The Mazak QT-Ez 8MSY represents a significant leap forward in turning center technology, offering the perfect balance of power, precision, and versatility. Its ability to perform multiple operations in a single setup can dramatically reduce production times and improve part accuracy. For manufacturers looking to enhance their machining capabilities and streamline their production processes, the QT-Ez 8MSY is an investment worth considering. To learn more about how this machine can benefit your operations or to discuss pricing and availability, we encourage you to reach out to our Used Machinery Staff via email or phone. Our team is ready to assist you in making an informed decision that aligns with your manufacturing goals.
