2019 Mazak VC-500/5X
Machine Specifications
| Year | 2019 |
|---|---|
| Control Type | Mazatrol Smooth X |
| Table | 19.68″ x 19.68″ |
| Travels | 21.85″ x 19.88″ x 20.07″ |
| Spindle Speed | 15,000 RPM |
| Equipped With | 5-Axis Machining Package, 60 ATC, ATLM, Chip Conveyor, Filtermist FX-300 Mist Collector, Manual Pulse Generator, Max Program Size 32MB, Mazak SuperFlow T8 Hi-Pressure Unit (1000 PSI), Renishaw Probe, Tool Radius Compensation, Workpiece Air Blast |
Request A Quote for this 2019 Mazak VC-500/5X Today!
Similar Used Machines
(30" or less X-Travel)
2019 Mazak VC-500/5X

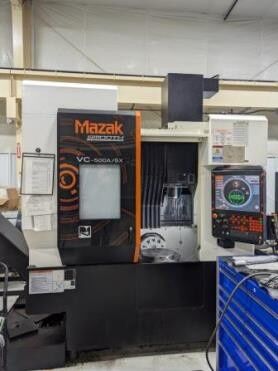

The 2019 Mazak VC-500A/5X is a versatile 5-axis vertical machining center designed for precision and efficiency in processing small complex parts. This Kentucky-made machine features a trunnion-style rotary/tilt table that enables full 5-axis machining capabilities, making it ideal for industries such as aerospace, medical, and precision manufacturing. With a maximum workpiece diameter of 19.68 inches and a height capacity of 12 inches, the VC-500A/5X offers ample space for a wide range of part sizes.

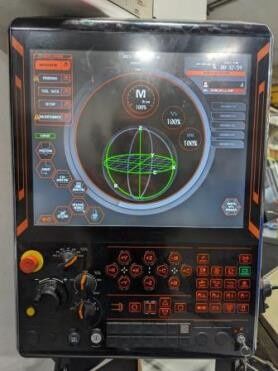

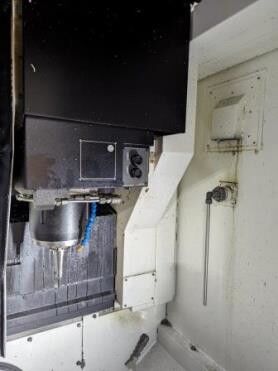

At the heart of this machine is a robust CAT-40 spindle, capable of reaching speeds up to 12,000 RPM (with optional 15,000 RPM available), delivering exceptional metal removal capabilities across various materials including steel, aluminum, and cast iron. The VC-500A/5X is equipped with the advanced Mazatrol SmoothX CNC control system, which allows for intuitive programming in both EIA/ISO and Mazatrol conversational formats, significantly reducing setup times and improving overall productivity.
Key features of the 2019 Mazak VC-500A/5X include:
- 60-tool capacity automatic tool changer for extended uninterrupted operations
- B-axis tilt range of +110 to -110 degrees and 360-degree C-axis rotation for complex part machining

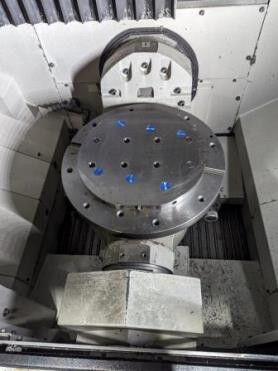

- High-speed roller gear cam drive technology in the trunnion table for improved accuracy and rigidity
- Mazak SuperFlow T8 high-pressure coolant system (1000 PSI) for enhanced chip evacuation and tool life
- Renishaw probe system for in-process measurement and quality control
The 2019 Mazak VC-500A/5X represents a powerful solution for shops seeking to enhance their precision machining capabilities. Its combination of 5-axis versatility, advanced control features, and robust construction makes it an excellent choice for producing complex parts with high accuracy and efficiency. To learn more about how this machine can benefit your operations or to discuss pricing and availability, we encourage you to contact our Used Machinery Staff via email or phone. Our team of experts is ready to provide you with detailed information and assist you in making an informed decision about this high-performance vertical machining center.
