2019 Mazak Hyper Quadrex 200MSY
Machine Specifications
| Year | 2019 |
|---|---|
| Control Type | Mazatrol Smooth G |
| Swing | 14.57" |
| Machining Length | 33.8" |
| Max Cutting Diameter | 13.5" |
| Spindle Speed | 5,000 RPM (2nd Spindle), 5,000 RPM (Main Spindle) |
| Rotary Speed | 6,000 RPM |
| Chuck | 8" (2nd Spindle), 8″ (Main Spindle) |
| Equipped With | Automatic Tool Eye, Chip Conveyor, Chuck Air Blast, EIA/ISO Option Package, Hi-Pressure Coolant (300 PSI), Stick Tool, Synch. Tapping |
Request A Quote for this 2019 Mazak Hyper Quadrex 200MSY Today!
Similar Used Machines
(6" - 8" Chuck)
2019 Mazak Hyper Quadrex 200MSY

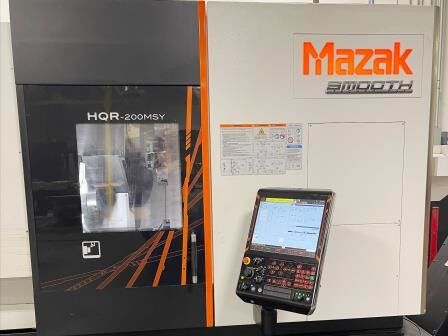

The 2019 Mazak Hyper Quadrex 200MSY is a cutting-edge CNC turning center that redefines precision and efficiency in machining operations. This advanced machine combines the power of twin-spindle technology with Y-axis capabilities, allowing for complex part production in a single setup. With its robust construction and state-of-the-art control system, the Hyper Quadrex 200MSY delivers exceptional accuracy and surface finishes, making it ideal for industries demanding high-quality components. Designed to maximize productivity, this Mazak turning center features a spacious work envelope and a rapid traverse rate of 30 m/min (1,181 IPM) in all axes. The machine’s 12-station turret accommodates both rotating and stationary tools, enabling milling, drilling, and tapping operations alongside traditional turning. This versatility significantly reduces cycle times and eliminates the need for secondary operations, streamlining your production process and boosting overall efficiency.
Key features of the 2019 Mazak Hyper Quadrex 200MSY include:
- Twin spindles with 5,000 RPM and 15 HP (11 kW) for simultaneous machining
- Y-axis travel of ±50 mm (±1.97″) for off-center milling and drilling

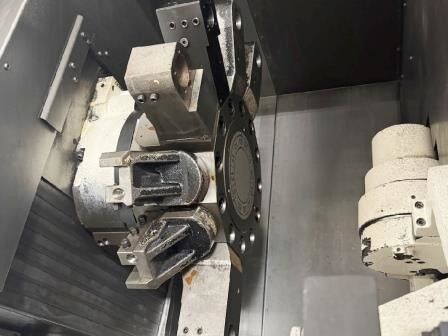

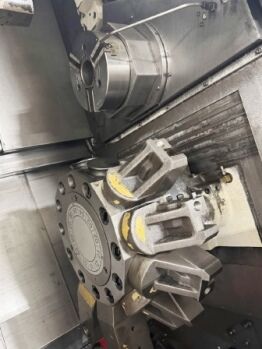

- 12-station turret with rotary tool spindle speed of 6,000 RPM

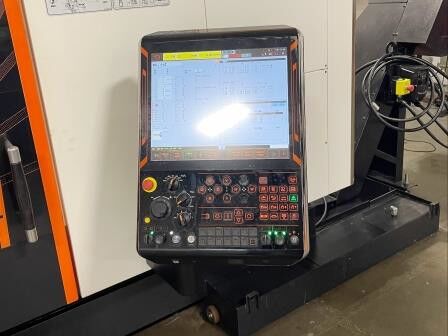

- Mazatrol SmoothG CNC control for intuitive programming and operation
- Compact footprint for optimized floor space utilization
In summary, the 2019 Mazak Hyper Quadrex 200MSY is a powerhouse of productivity, offering unparalleled versatility and precision in a compact package. Whether you’re looking to enhance your manufacturing capabilities or streamline your production process, this machine is an excellent investment for your shop. To learn more about this exceptional CNC turning center or to discuss how it can benefit your operations, don’t hesitate to reach out to our Used Machinery Staff via email or phone. Our team of experts is ready to assist you in making an informed decision that will drive your business forward.
