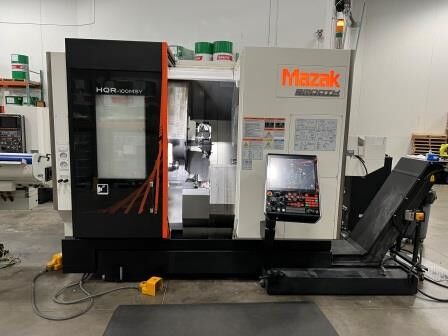

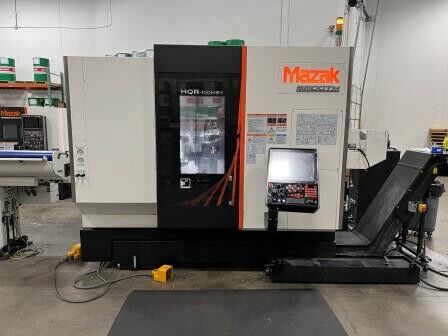

2017 Mazak Hyper Quadrex 100MSY
Machine Specifications
| Year | 2017 |
|---|---|
| Control Type | Mazatrol Smooth G |
| Swing | 12.6" |
| Machining Length | 24.375" |
| Spindle Speed | 6,000 RPM (2nd Spindle), 6,000 RPM (Main Spindle) |
| Rotary Speed | 6,000 RPM |
| Chuck | 6" (2nd Spindle), 6" (Main Spindle) |
| Equipped With | 213 PSI High Power Coolant, 3-Jaw Chuck (2nd Spindle), Automatic Tool Presetter (x2), Chip Conveyor, Coolant Chiller, Iemca Prodigy 551 Barfeed, Live Tooling (Upper and Lower Turrets), Parts Catcher/Unload Hand, Y Axis (Upper and Lower Turrets) |
Request A Quote for this 2017 Mazak Hyper Quadrex 100MSY Today!
Similar Used Machines
(6" - 8" Chuck)
2017 Mazak Hyper Quadrex 100MSY
The 2017 Mazak Hyper Quadrex 100MSY is a sophisticated multi-tasking turning center engineered for high-volume production of complex parts. This machine combines turning and milling capabilities in a compact design, offering exceptional versatility and productivity.
Key features of the Hyper Quadrex 100MSY include:

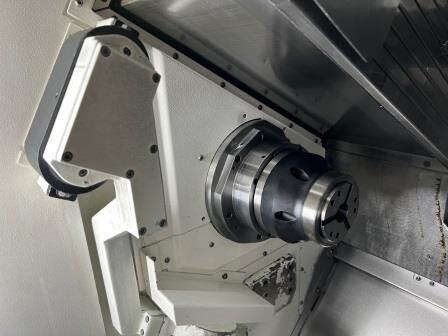

- Dual spindle configuration: Two horizontally opposed spindles, each with a 6-inch chuck, enable simultaneous machining on both ends of a workpiece.
- Twin turret setup: Upper and lower 12-position tool turrets, both with Y-axis capability, allow for balanced cutting and off-center machining.
- Live tooling: Both turrets can accommodate fixed and live tools, powered by 6,000 rpm, 7.5 HP spindles, for milling and drilling operations.
- High-speed spindles: Main and secondary spindles can reach speeds up to 6,000 rpm with 15 HP output.
- Mazatrol SmoothG CNC control: Provides user-friendly programming and operation for efficient machining.
- Automation-ready: Compatible with bar feeders, automatic part unloaders, or robotic systems for extended unmanned operation.
The 2017 Mazak Hyper Quadrex 100MSY is a sophisticated multi-tasking turning center engineered for high-volume production of complex parts. This machine combines turning and milling capabilities in a compact design, offering exceptional versatility and productivity.The Mazak Hyper Quadrex 100MSY is a high-performance multi-tasking turning center designed for efficient machining of complex parts. This machine is designed for high-volume production, offering increased productivity and versatility in industries such as automotive, aerospace, and general machining.
