2016 Mazak Mega Turn 900M
Machine Specifications
| Year | 2016 |
|---|---|
| Control Type | Mazatrol Smooth C |
| Swing | 39.7" |
| Machining Length | 31.5" |
| Spindle Speed | 1,250 RPM |
| Rotary Speed | 4,000 RPM |

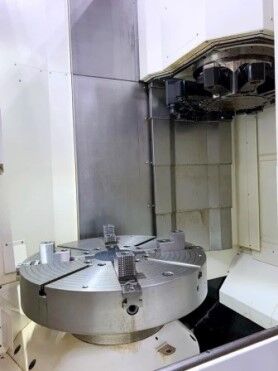

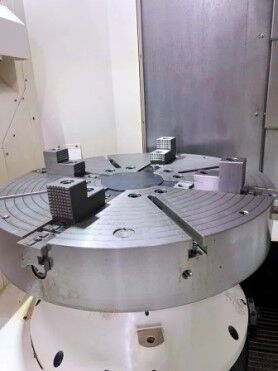

| Chuck | 36" |

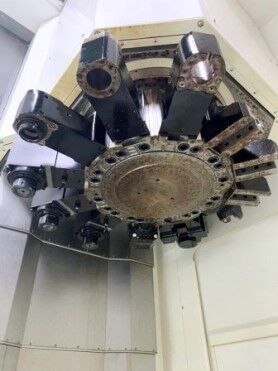

| Equipped With | 4 Live Tool Holder Included, 8 ATC, Available Automatic Tool Changing System, Chip Conveyor Rear Disposal (Hinge Type), High-Power Coolant (118 PSI), Kitagawa 36” Chuck Size Tool Eye (Automatic |
Request A Quote for this 2016 Mazak Mega Turn 900M Today!
Similar Used Machines
2016 Mazak Mega Turn 900M

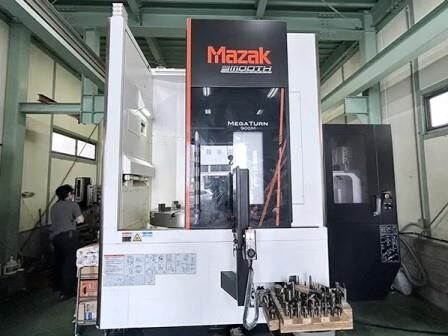

This vertical turning center is designed to boost productivity by combining multiple processes, reducing setup times, and minimizing workpiece handling. Its robust construction and advanced features make it suitable for machining large, complex parts with high precision and efficiency. The 2016 Mazak MEGA TURN 900M is a high-performance vertical CNC turning center designed for efficient processing of large workpieces. This machine combines powerful turning capabilities with secondary machining operations, making it ideal for
Key features include:
- Large machining capacity: The machine can accommodate workpieces up to 36.2″ in diameter and 31.5″ in height, with a maximum weight capacity of 6,624 lbs (including chuck)
- Powerful spindle: Equipped with a rigid 40-hp, 1,250-rpm integrated main drive motor/spindle that generates 2,696 foot-pounds of torque for heavy-duty machining
- Milling capability: The “M” designation indicates rotary tool milling functionality, enabling both turning and secondary machining operations on a single machine

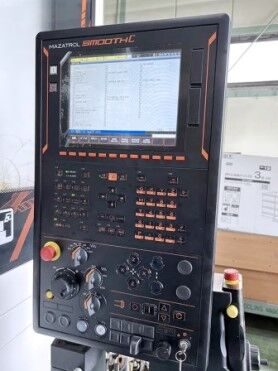

- The Mazatrol SmoothC CNC control system is designed to offer complete ease of use while ensuring high-performance CNC machining for a variety of operations.
- Efficient coolant system: Features high-powered coolant system for improved chip evacuation and thermal stability during cutting operations
