2011 Star SG-42
Machine Specifications
| Year | 2011 |
|---|---|
| Control Type | Fanuc 31iA |
| Machining Length | 4" |
| Max Bar Size | 1.65" |
| Spindle Speed | 5,700 RPM (2nd Spindle), 7,000 RPM (Main Spindle) |
| Equipped With | 1 tool / station (20mm), Max 2 tool/station (16mm), 10 Station Turret, 100mm Max Part Length, 10mm (25/64") Max Drilling Capacity, 23mm (29/32") Max Drilling Capacity, 6-Axes: X1, Y2, Z1 (Turret), Z2 (Sub Spindle), C1, C2, 75mm Max Part Projection Length, Barfeeder, C-Axis Control, Chip Conveyor, Coolant Tank, M12 x P1.75 Max Tapping Capacity, M8 x P1.25 Max Tapping Capacity, Max 2 / Station, Max 3 / Station, Power Drive Attachments, Sleeve Holder |
Request A Quote for this 2011 Star SG-42 Today!

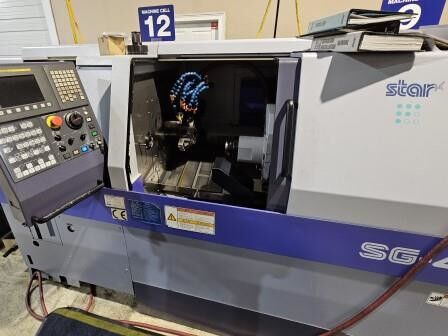

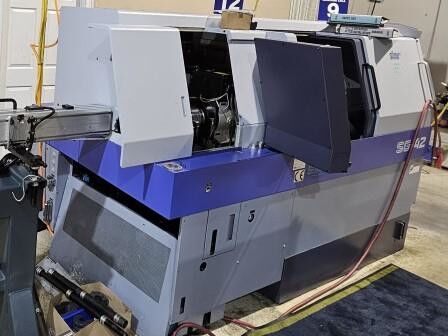

2011 Star SG-42
The 2011 Star SG-42 is a high-performance CNC lathe designed for precision machining of complex components up to 1.65″ in diameter. This fixed-head automatic lathe features a robust 6-axis configuration, including X1, Y2, Z1 (Turret), Z2 (Sub Spindle), C1, and C2, allowing for intricate part production with exceptional accuracy. Equipped with a Fanuc 32iA control system, the SG-42 offers advanced programming capabilities and user-friendly operation for efficient production runs.

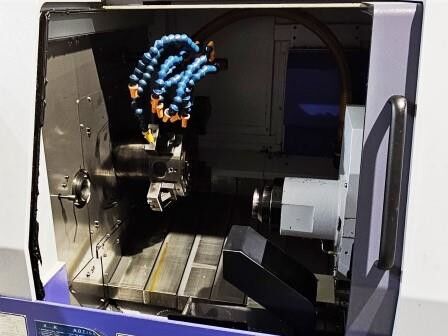

At the heart of this machine are two powerful spindles, with the main spindle capable of reaching speeds up to 7000 RPM and the secondary spindle operating at 5700 RPM. The 10-station turret provides versatile tooling options, accommodating both single and multiple tool setups per station. This flexibility, combined with the machine’s C-axis control, enables the SG-42 to handle a wide range of turning, milling, and drilling operations with ease.
Key features of the 2011 Star SG-42 include:
- Maximum machining length of 4″ for versatile part production
- 10-station turret with the capability for up to 3 sleeve holders per station
- Power-driven attachments supporting up to 10mm drilling and M8 x P1.25 tapping
- C-axis control for complex contouring and milling operations
- 100mm maximum part length and 75mm maximum part projection length

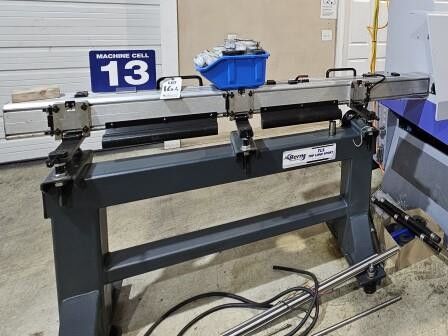

- Integrated barfeeder and chip conveyor for enhanced productivity
The Star SG-42 is an ideal solution for manufacturers seeking a compact yet powerful CNC lathe for producing high-precision parts. With its advanced features, including the Fanuc 32iA control system and multi-axis capabilities, this machine offers the perfect balance of speed, accuracy, and flexibility for a wide range of machining applications in industries such as aerospace, automotive, and medical device manufacturing.
